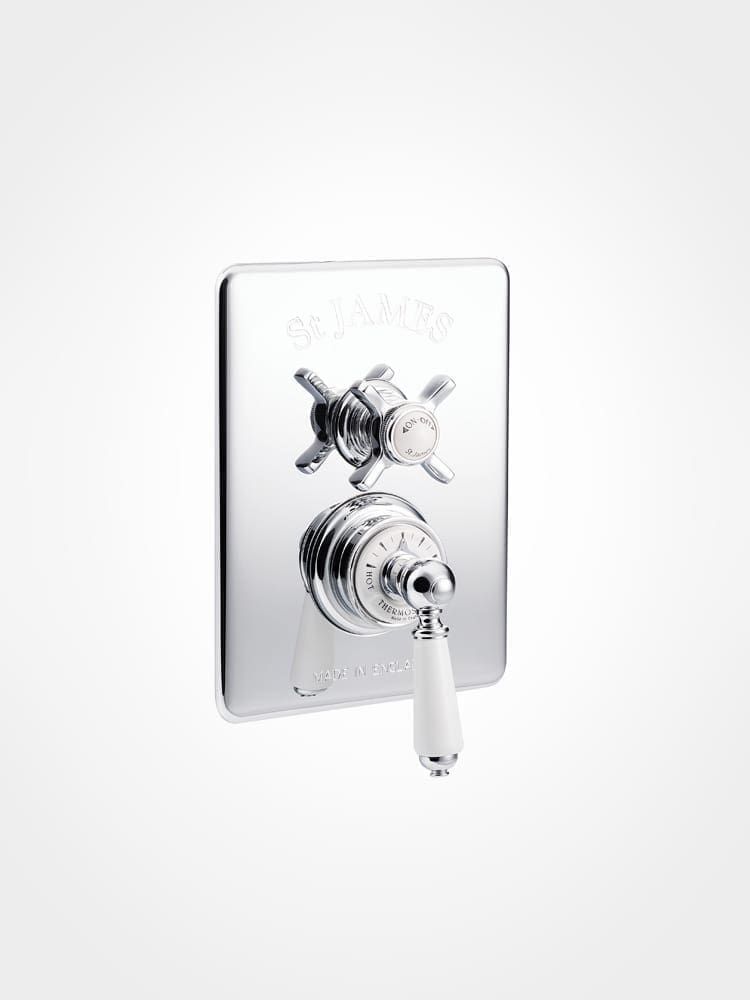

St James concealed thermostatic shower mixer – cross handle collection

Code 21007602 Categories: , ,
Code 21007602

Designed for a concealed plumbing installation
With an engraved concealing plate
Top tap head controls the water flow whilst bottom lever operates the temperature

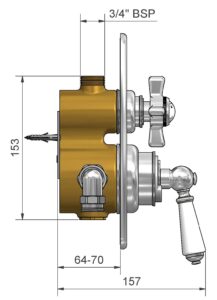

Dimensions:
Inlets: 15mm
Inlet centres: 150mm
Plate height: 230mm
Plate width: 170mm
Projection: 140mm

R13,650.00

The luxury St James Collection is crafted in the heart of England and inspired by the classic lines of the Victorian era but incorporating modern technology. Handcrafted in solid brass and finished with the finest English porcelain lever.
The St James thermostatic shower mixer is dual flow in that the water flow and water temperature can be independently operated. The temperature is factory set to a maximum of 45ºC.

This thermostatic shower mixer is available with a quarter-turn tap head, porcelain dial and lever in white only.

Specification download

Plumbing
This mixer is designed for a concealed installation with a concealed depth of 64–70mm.
The inlets are 15mm whilst the outlet is 22mm.
The St James thermostatic shower mixer is dual flow in that the water flow and water temperature can be independently operated. The temperature is factory set to a maximum of 45ºC.
Should it be required, an extension kit (21107701) is available upon request at an additional cost.

Water pressure
Use with balanced water pressure between 100 Kpa and 400 Kpa.

10 Year Guarantee against manufacturing defects on tapware

Cleaning
Clean with warm water, a mild detergent and dry with a soft cloth.
Avoid cleaners containing abrasive materials.
When situated close to the sea, ensure that the chrome is cleaned regularly to remove salt residue.
