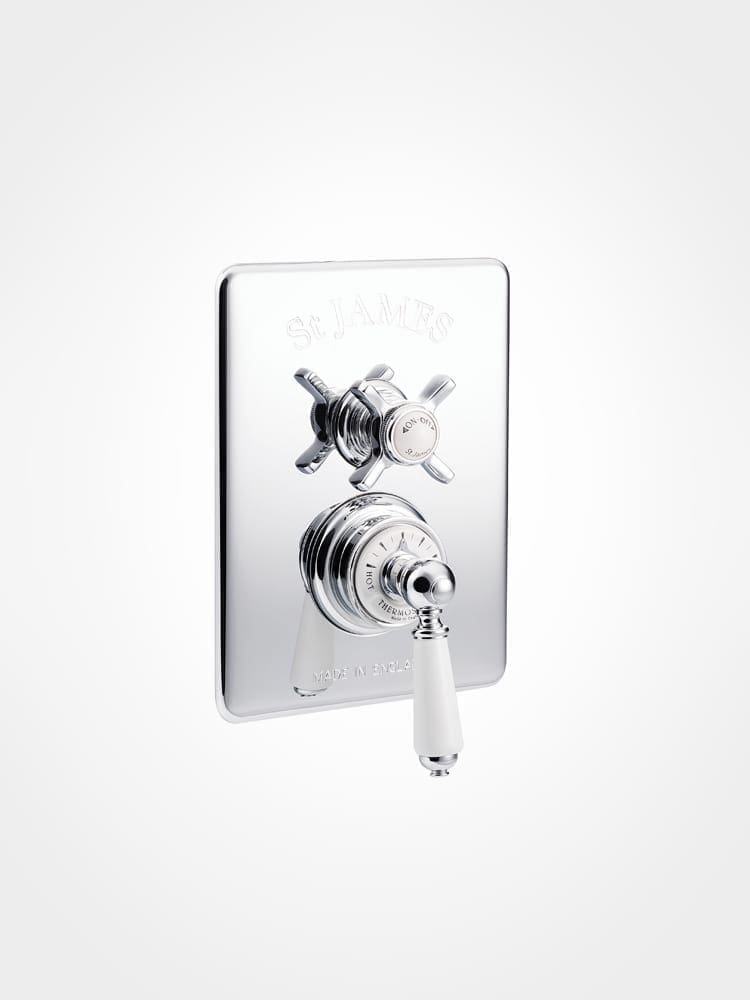

St James concealed thermostatic shower mixer & diverter

Code 21117601 Categories: , ,
Code 21117601

Designed for a concealed plumbing installation with 2 water outlets.
With an engraved concealing plate.
Top cross handle is a 2-way diverter whilst the bottom lever sets the temperature.

Dimensions:
Inlets: 15mm
Inlet centres: 150mm
Plate height: 230mm
Plate width: 170mm
Projection: 140mm

** Refer to BESPOKE FINISH page for sample pictures and more information

R21,950.00R32,040.00

Clear

The luxury St James Collection is crafted in the heart of England and inspired by the classic lines of the Victorian era but incorporating modern technology. Handcrafted in solid brass and finished with the finest English porcelain lever.
The St James thermostatic shower mixer is dual flow in that the water flow and water temperature can be independently operated. The temperature is factory set to a maximum of 45ºC.

This shower mixer has a 2-way diverter where the top cross handle selects the desired water outlet and the bottom lever controls the temperature.
An extension kit is available should it be required (21107701).

Dimensions:
Inlets: 15mm
Inlet centres: 150mm
Concealed Depth: 64 – 70mm
Plate height & width: 230mm x 170mm

Specification download

Plumbing
This mixer is designed for a concealed installation with a concealed depth of 64–70mm.
The inlets are 15mm but please note that the top outlet is 22mm, making it the primary water outlet, whilst the side outlet is 15mm, thus the secondary water outlet.

The St James thermostatic shower mixer is dual flow in that the water flow and water temperature can be independently operated. The temperature is factory set to a maximum of 45ºC.
Should it be required, an extension kit (21107701) is available upon request at an additional cost.

Water pressure
Use with balanced water pressure between 100 Kpa and 400 Kpa.

10 Year Guarantee against manufacturing defects on tapware

Cleaning
Clean with warm water, a mild detergent and dry with a soft cloth.
Avoid cleaners containing abrasive materials.
When situated close to the sea, ensure that the chrome is cleaned regularly to remove salt residue.
