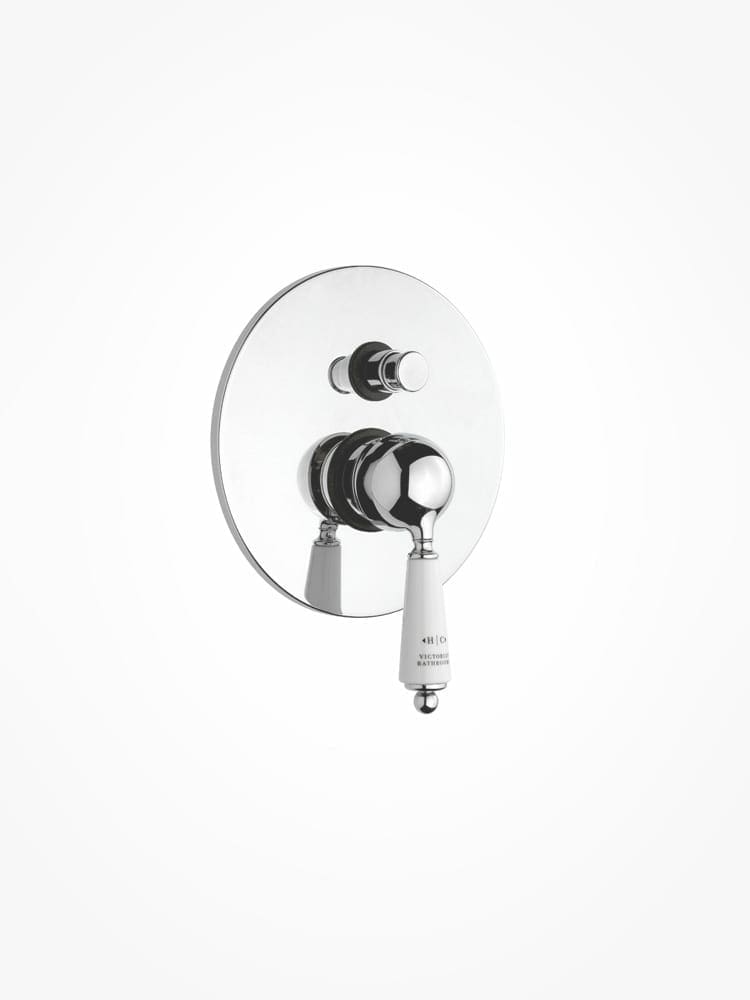

Britannia concealed bath-shower mixer with diverter

Code 23007301 Categories: , ,
Code 23007301

Designed for a concealed plumbing installation.
With concealing plate & button for built-in diverter.

Dimensions:
Inlets: 15mm
Bottom outlet: 22mm (primary water outlet)
Top outlet: 15mm (secondary water outlet)
Plate diameter: 155mm

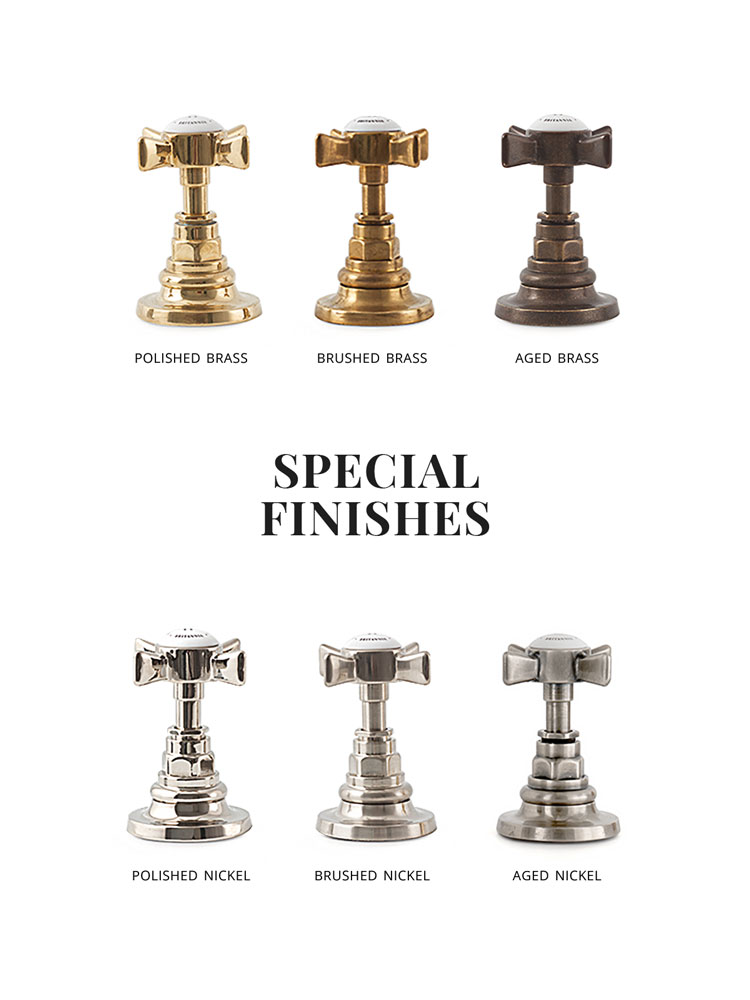

** Refer to BESPOKE FINISH page for sample pictures and more information

R3,395.00R5,303.00

Clear

When deciding on a shower configuration, it is important to note whether your plumbing will be concealed inside the wall or visible against the tiling. Concealed shower mixers are designed for plumbing to be built within the wall.

The Britannia Collection is manufactured in Italy, specifically for Victorian Bathrooms’ requirements. Built on a foundation of integrity, quality and passion this range meets the needs of consumers seeking a quality product in the classic style, which is timeless in appeal, at a reasonable price.

Including modern technologies such as ceramic disc quarter-turn mechanisms the Britannia collection is available with either traditional tap heads or white levers and is imported into South Africa in the chrome finish. Black indices (Hot/Cold) and Black levers are available as well. Customised bespoke finishes such as polished, brushed and aged brass, or polished and brushed nickel, as well as powder coated black, are available on special request.

The Britannia Collection is built to last. To this end Victorian Bathrooms offers full spares back-up



Dimensions:
Inlets: 15mm
Bottom outlet: 22mm (primary water outlet)
Top outlet: 15mm (secondary water outlet)
Plate diameter: 155mm

Specification download
CAD Library (for Architects or Interiors designers only)

Plumbing
The plumbing for the Britannia concealed bath-shower mixer with diverter is to be concealed within the wall. This mixer has a built-in diverter and is suitable to be used at a bath and in a shower. The built-in diverter allows for water to be utilised between two water outlets. The bottom outlet (22mm) is to be connected to the primary water outlet whilst the top outlet is to be connected to the secondary water outlet.

Should it be required, an extension piece is available at an additional cost. A plain white lever, without any lettering, is also available at an additional cost. Please consult with your sales consultant for further information.

Cleaning
Clean with warm water, a mild detergent and dry with a soft cloth.
Avoid cleaners containing abrasive materials.
When situated close to the sea, ensure that the chrome is cleaned regularly to remove salt residue.
