R4,615.00

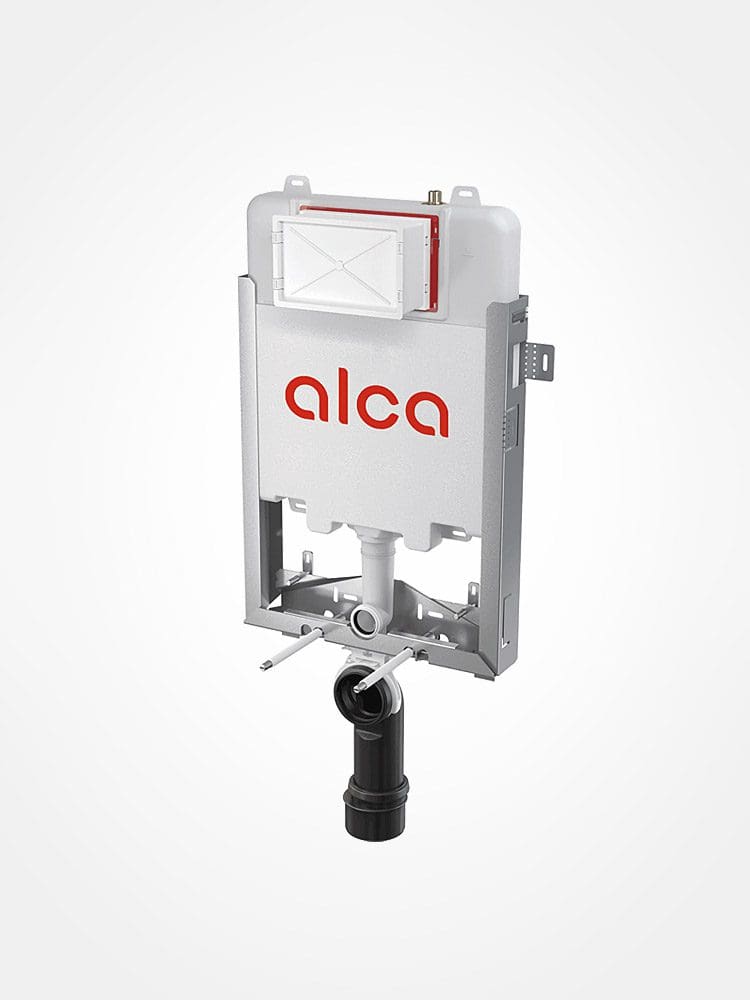

Concealed cistern only – actuator plate to be purchased separately.
Compatible with wall hung pans.
Dimensions:
Width: 507mm
Mounting height: 1070mm
Installation depth: 86mm
3 or 6 litre flush
| Weight | 10 kg |
|---|---|
| Collections | Alca Collection |
| Filter | Toilets | Mounting | Wall Mounted |
Specification download
Installation instructions
For installation of wall hung WC pans with a connecting pitch of 180 mm or 230 mm.
Suitable for single or double wall installation.
Actuator plate, toilet pan and seat are not included.
– Sliding rail holder for waste connector can be set to eight positions between 0–93 mm.
– Angle valve with the ability to connect to the Mepla piping system.
– Allows anchoring to an uneven surface of the back wall where a cut out was made, in the range of 50 mm.
– Galvanized support structure with four hinged brackets for easy installation.
– Polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure.
– Dual flush independently adjustable with hygienic reserve – 3L or 6L.
– Compatible with all ALCA flush plates.
– Maintenance work without using any tools.
– Water supply from the rear/top.
– Removable piece of polystyrene allows for easy access during installation.
– The cistern is made of one piece, thus ensuring 100% impermeability.
– The service opening cover simplifies assembly and prevents the penetration of moisture and impurities.
