R3,025.00

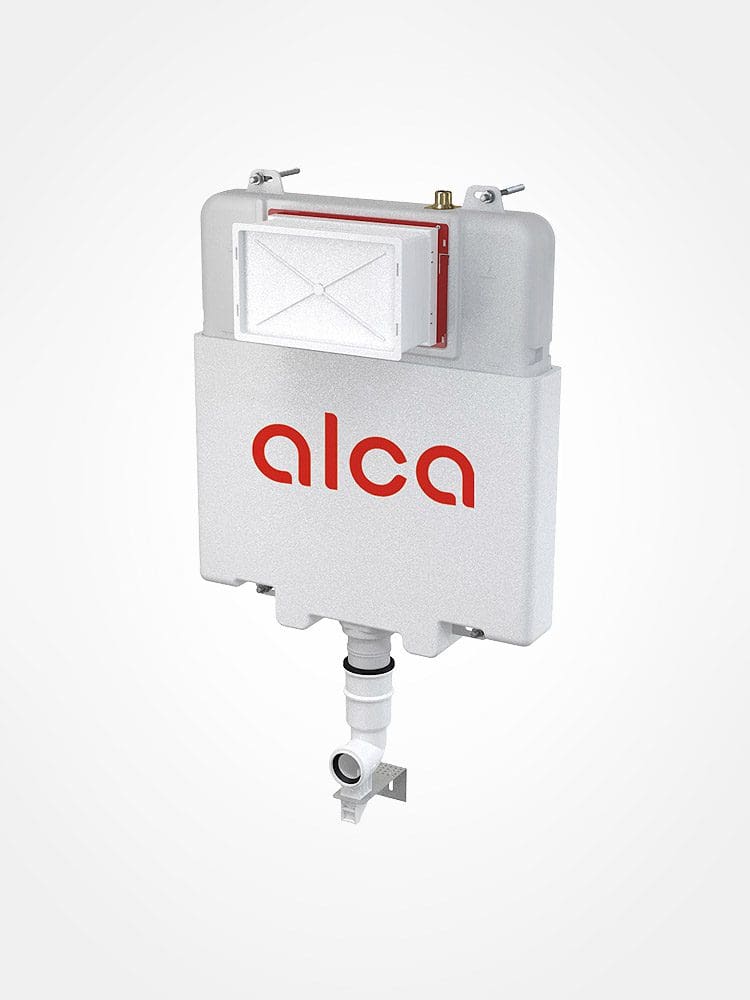

Concealed cistern only – actuator plate to be purchased separately.
Compatible with back to wall (floor-mounted) pans.
Dimensions:
Width: 504mm
Mounting height: 1070mm
Installation depth: 84mm
3 or 6 litre flush
Compatible with back to wall (floor-mounted) pans.
Offers a dual flush with two different options for standard or water-saving flushes.
| Weight | 10 kg |
|---|---|
| Collections | Alca Collection |
| Filter | Toilets | Mounting | Floor Mounted |
Specification download
Installation instructions
For installation with back to wall (floor-mounted) WC pans.
Suitable for single or double wall installation.
Actuator plate, toilet pan and seat are not included.
– Angle valve with the ability to connect to the Mepla piping system.
– Construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure.
– Dual flush independently adjustable with hygienic reserve – 3L or 6L.
– Compatible with all flush plates Alca except sensor flush plates and NIGHT LIGHT.
– The cistern is made of one piece, thus ensuring 100% impermeability.
– Water supply from the rear/top.
– Maintenance work without using any tools.
– The service opening cover simplifies assembly and prevents the penetration of moisture and impurities.
